Motor Trike offers an Independent Rear Suspension on many of their conversions. This makes for a great ride by allowing each wheel on the same axle to move independently of each other. This alone creates a smooth ride. However, Motor Trike did not stop there. First, they designed and patented an air ride suspension that offers over four inches of wheel travel. Then, they lowered the spring rate to create a more comfortable ride with plenty of 'give' when traveling over bumpy terrain, with an extra passenger, heavy cargo, or pulling a trailer. Because of the fingertip adjustable air ride suspension and softened spring rate, optimum ride quality is reached. Motor Trike also uses rubber bushings on all suspension components as well as on the differentials to reduce the noise, vibration, and harshness that can be bothersome to riders. Also the roll center height has been lowered ensuring both tires are kept in contact with the road at all times which helps to prevent rolling. And finally, Motor Trike uses a calibrated sway bar to ensure comfortable and secure cornering. With all of these preventative measures in place, the inconsistencies in the road are completely absorbed creating an effortless ride.
Independent Rear Suspension
All Motor Trike conversions include a patented air ride suspension, rear tires and wheels, interior trunk light, and a 3-year/60,000 mile warranty.
*Pricing subject to change without notice and does not include installation or shipping. Several different options are available for an upgraded price.
**Non-painted kits are manufactured and shipped to a dealer in 5-7 business days. Painted kits are manufactured and shipped to a dealer in 14-17 business days.
**Due to incredibly high demand, we are experiencing longer than normal lead times. Please contact Motor Trike/your dealer for details.
Specifications
| Overall Width | 55" |
| Wheelbase Length | 66.5" |
| Overall Length | 107" |
| Weight | 1,250 lbs |
| Storage | 3.3 cubic ft |

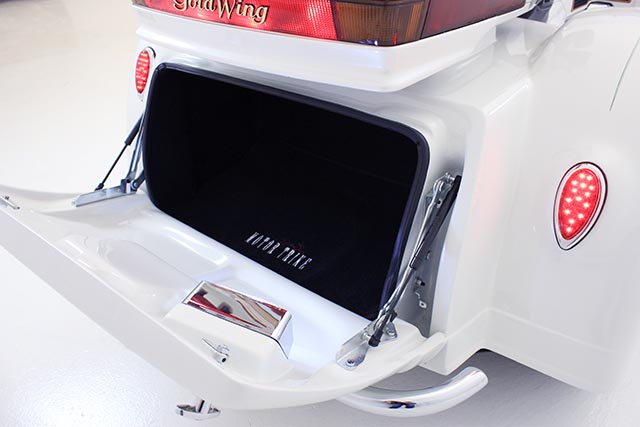

| Trunk Door Opening | 25.5" x 14" |
| Suspension Style | Unequal Length Upper and Lower Control Arms |
| Body Material | Polyester Resin Fiberglass |
| Drive System | Shaft Drive |
Motor Trike does not significantly increase the wheelbase length when installing a trike conversion onto a motorcycle. This preserves low-speed maneuverability similar to that of a two-wheel bike while still allowing the trike to handle and ride smoothly at any speed, without a rake kit.
